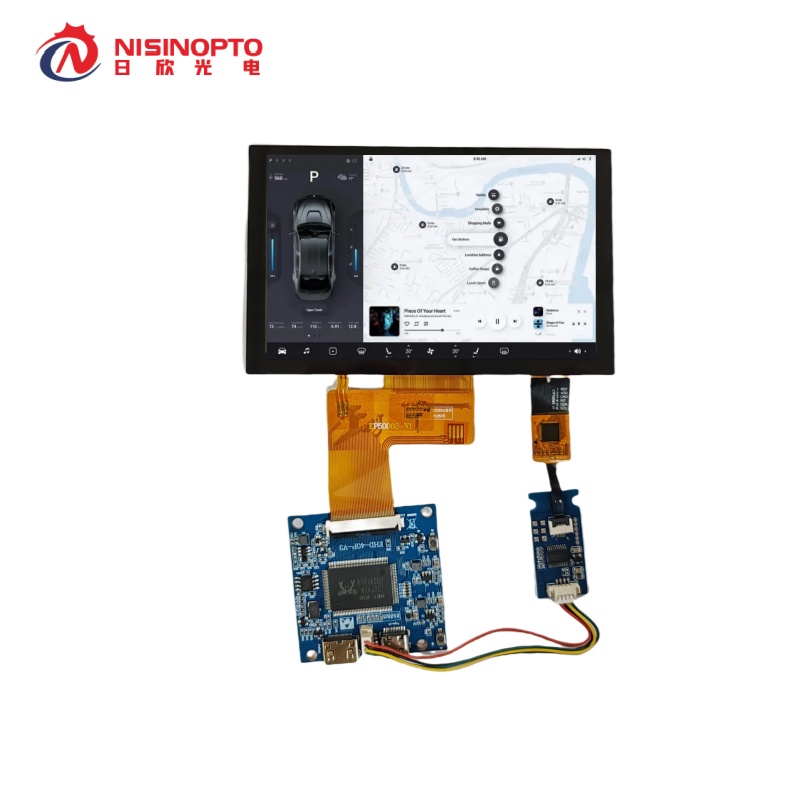

5.0-inch capacitive touch LCD screen + touchpad + EHD-40
5.0-inch capacitive touch LCD screen product overview
The 5.0-inch capacitive touch LCD screen + touchpad + EHD-40 demo version is a high-performance, multi-scenario application embedded display solution designed for industrial, eletrônicos de consumo, and intelligent equipment. The product uses a 5.0-inch capacitive touch screen with 800×480 high-definition resolution and IPS hard screen technology to ensure clear and delicate images, support 178° full-viewing angle display, no color cast, no dead angle, and provide excellent visual experience even in strong light environments (500cd/m² high brightness).
In terms of hardware, the product is equipped with ST7265 LCD driver and GT911 touch driver dual-chip solutions, which are responsive and stable, and support multi-touch functions; it is also equipped with a 40pin 0.5mm LCD socket and RGB888/666/565 multi-mode data interface, which has strong compatibility and can be quickly integrated into various development platforms. The glass touch surface is scratch-resistant and wear-resistant and has a smooth touch experience. With an ultra-thin body design (120.7×75.8×4.15mm), it perfectly fits the space constraints of embedded devices.
The product supports 2.8-3.3V wide voltage power supply, and the low-power design extends the battery life of portable devices. The matching EHD-40 demo version provides complete development support, greatly shortens the debugging cycle, and helps customers quickly realize product prototype development.
5.0-inch capacitive touch LCD screen product highlights and advantages
☞ High-definition display and wide viewing angle
● 5.0-inch capacitive screen: with 800×480 resolution, the picture is clear and delicate, and the details are accurate.
● IPS hard screen technology: 178° full-viewing angle display, suitable for multi-angle viewing scenes, no color cast, no dead angle.
● High brightness design: 500brilho cd/m², still visible in strong light environment, suitable for outdoor or industrial scenes.
☞ High-performance hardware support
● Dual driver chip: equipped with ST7265 LCD driver and GT911 touch driver, resposta sensível, stable operation, and support for multi-touch.
● Diversified interfaces: support RGB888/666/565 color modes, strong compatibility; 40pin 0.5mm LCD socket, stable connection and easy integration.
☞ Durability and portability
● Glass touch material: high surface hardness, scratch resistance, wear resistance, sensitive and smooth touch, and long service life.
● Ultra-thin design: the size of the whole machine is only 120.7×75.8×4.15mm, the thickness is less than 5mm, saving space, and is, suitable for embedded devices.
● Low power supply: 2.8-3.3V wide voltage input, energy-saving and efficient, suitable for battery-powered portable devices.
☞ Complete supporting solutions
EHD-40 demo version: provides complete development support, simplifies the debugging process, and helps customers quickly realize product prototype development.
5.0-inch capacitive touch LCD screen application areas
● Industrial control: suitable for industrial control equipment, instrumentos, and meters, PLC operation panels, resistant to high brightness environments, and complex working conditions.
● Smart home: integrated in smart central control screens, sistemas de segurança, and home appliance control terminals to enhance the interactive experience.
● Medical equipment: used for medical monitors and portable testing equipment to meet the needs of high-precision display and stable touch.
● In-vehicle electronics: adapted to in-vehicle navigation, reversing images, rear entertainment systems, anti-vibration, e amplo ângulo de visão.
● Consumer electronics: can be embedded in educational tablets, terminais portáteis, self-service machines, etc., and the thin and light design is adapted to a variety of scenarios.
