Showing 61–70 of 72 results

Custom TFT LCD Module Manufacturer

Resolution： 1024 * 600 Interface Type： LVDS Display Area: 151.76 * 79.8(mm) LCM Dimensions: 161 * 91.1 * 5(mm) Product Dimensions: 192.58 * 104.69 * 6.8(mm),Touch customizable Dot Pitch: 0.0299 mm * 0.0897 mm Color: 16.7M Contrast Ratio: 1000 Response time: 40ms Brightness: 930cd/m2 Product type: TFT Display Type: Normal Black View Angle: Full view Operating temperature: -20℃~+70℃ Storage temperature: -30℃~+80℃ Customization: Yes
Read more

Custom Touch LCD Display with UART Serial Port

PCBA Outside Dimensions： 121.90(W)*73.20(H)*14.30(T)(mm) LCM Outside Dimensions： 105.50(W)*67.20(H)*3.00(T)(mm) Active Area： 95.04(W)*53.86(H)(mm) Resolution： 800*480 Touch Type： CTP Color： 16.7M Interface Type： TTL、（RS232/RS485 Customizable) Input Voltage： 5V Viewing Direction： Full view Backlight Luminance： 350 cd/m² Operating Temperature： -20℃~+70℃ Storage Temperature： -30℃~+80℃ Customization： Yes
Read more
8.0 inch TFT LCD display
8-inch LCD display

Customizable 8″ 1200*1920 MIPI TFT LCD Module

Resolution： 1200*1920 Interface Type： MIPI Display Area： 107.6*172.22(mm) LCM Dimensions： 113.1*182.4*1.79(mm) Dot Pitch： 0.0299*0.0897(mm) Color： 16.7M Contrast Ratio： 1000:1 Response Time： 35ms Brightness： 330cd/m² Product Type： TFT Display Type： Normal Black View Angle： Full view Operating Temperature： -20℃~+60℃ Storage Temperature： -30℃~+70℃ Customization： Yes
Read more
New 1.6 Inch 400*400 MIPI TTL Uart Knob Screen

New 1.6 Inch 400*400 TTL Uart Knob Screen

Panel Type: TFT LCD Size: 1.6 inch Display Type: Normal Black Resolution: 400X400 Dot Pitch: 33.2um X 99.6um Colors: 16.7M Viewing Direction: IPS Interface Type: MIPI1 LANE TP Type: 12C Display Area: 39.84mmX39.84mm Dimension: 53(H)X 53(V)X 3.53(T)(mm) Material Aluminum: Alloy shell + ABS base Brightness: 300 cd/m2 Touchpoints: 5 USB Interface: Yes, Micro-B connector Mode Selection: TTL ESD Contact discharge: ±4KV, air discharge: ±8KV Operating Voltage: 4.5-5.5V Backlight: LED Operating Temperature: -20℃~+70℃ Storage Temperature: -30℃~+80℃ Customization: Yes
Read more

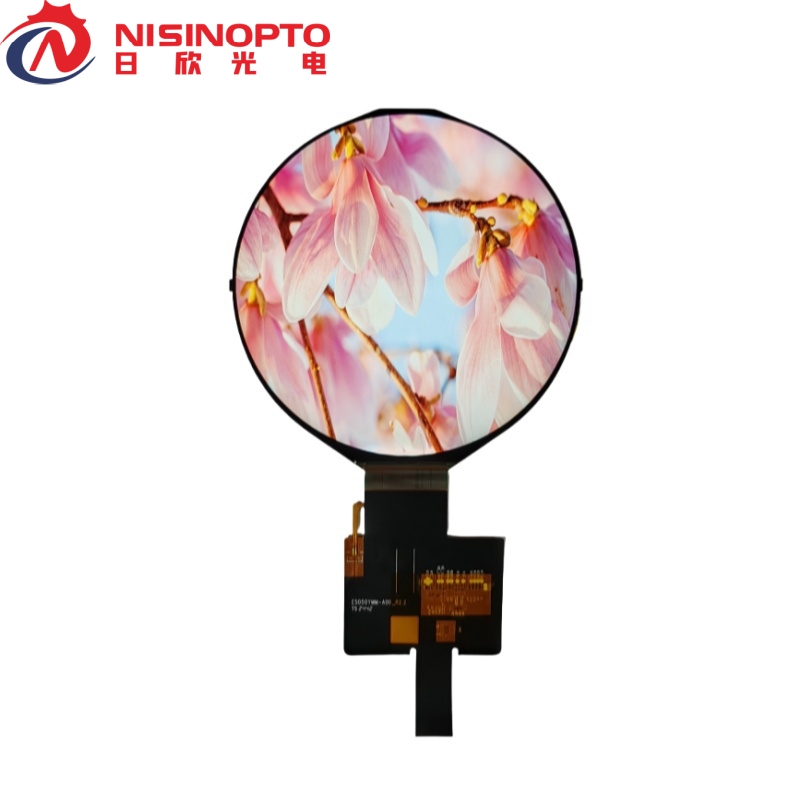

Round TFT LCD Display Module Factory

Resolution： 128*128 Interface Type： SPI Display Area： 23.04*23.04(mm) LCM Dimensions： 25.24*27.14*1.94(mm) Product Dimensions： 33*33*2.79(mm)，Customizable appearance Dot Pitch： 180um*180um Color： 16.7M Contrast Ratio： 800 Response Time： 35MS Brightness： 800cd/m² Product Type： TFT Display Type： Normal Black View Angle： U/D/L/R: 85/85/85/85 (TYP) Operating Temperature:  -20℃~+70℃ Storage Temperature：-30℃~+80℃ Customization： Yes
Read more

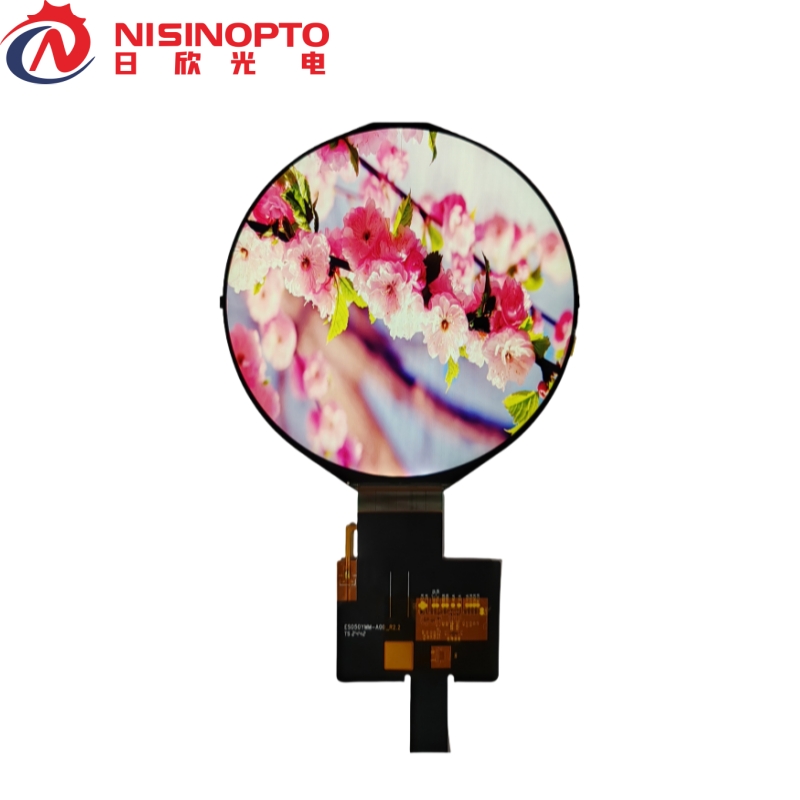

Round TFT LCD Display Panels Supplier

Resolution： 400*400 Interface Type： MIPI 、QSPI Display Area： 39.84*39.84(mm) LCM Dimensions： 42.14*44.34*1.9(mm) Product size: 53*53*3.53 (mm) Dot Pitch: 33.2um*99.6um Color: 16.7M Contrast Ratio: 900 Response time: 35ms Brightness: 300cd/m² Product type: TFT Display Type: Normal Black View Angle: Full view Operating temperature: -20℃~+70℃ Storage temperature: -30℃~+80℃ Customization: Yes
Read more

TFT LCD Display Manufacturer

Resolution： 240*320 Interface Type： MCU 、RGB 、 SPI Display area： 30.6*40.8(mm) LCM Dimensions： 36.72*52.74*2.65(mm) Dot Pitch： 0.1275mm * 0.1275mm Color： 262K Contrast Ratio： 110 Response time： 30ms Brightness： 200cd/m² Product type ：TFT Display Type： Transflective ，Semi-reflective，Normally White View Angle： Full View Operating temperature： -20℃~+70℃ Storage temperature： -30℃~+80℃ Customization： Yes
Read more

TFT LCD Display Module Touch Screen Factory

Resolution： 480*640 Support Interface： MIPI、RGB、MCU Display Area： 36.72*48.94(mm) LCM Dimensions： 42.72*60.26*2.2(mm) Dot Pitch： 76.5 Um*76.5 Um Color： 16.7M Contrast Ratio： 800:1000 Response Time： 35ms Brightness： 500cd/m² Product Type： TFT Display Type： Normal Black View Angle： ALL Operating Temperature： -20℃~+70℃ Storage Temperature： -30℃~+80℃ Customization： Yes
Read more

TFT LCD Module Touch Screen Display

Resolution: 640 * 480 Interface Type: RGB、LVDS Display Area: 115.2 * 86.4(mm) LCM Dimensions: 126.5 * 100 * 5.5(mm)，Touch customizable Dot Pitch: 0.018mm * 0.018mm Color: 16.7M Contrast Ratio: 1000 Response Time: 35ms Brightness: 250cd/m² Product Type: TFT Display Type: Normal Black View Angle: Full view Operating temperature: -20℃~+70℃ Storage temperature: -30℃~+80℃ Customization: Yes
Read more

TFT LCD Touch Screen Manufacturers

5.45-inch heated LCD display, suitable for use in cold areas. Size： 5.45 inch Resolution： 720*1440 Product proportion： 18:9 Support interface： MIPI LCM Dimension： 64.28*130.48mm Display area： 61.88*123.77 (mm) Brightness： 500cd/m² Product type： TFT(a-si) Display Type： Normal Black View Angle： U/D/L/R: 80/80/80/80 Touch type： CTP Operating temperature： -20℃~+70℃ Storage temperature： -30℃~+80℃ Customization： Yes
Read more
