Showing 1–10 of 83 results

0.9 Inch Round TFT LCD Display Module Factory

Resolution： 128*128 Interface Type： SPI Display Area： 23.04*23.04(mm) LCM Dimensions： 25.24*27.14*1.94(mm) Product Dimensions： 33*33*2.79(mm)，Customizable appearance Dot Pitch： 180um*180um Color： 16.7M Contrast Ratio： 800 Response Time： 35MS Brightness： 800cd/m² Product Type： TFT Display Type： Normal Black View Angle： U/D/L/R: 85/85/85/85 (TYP) Operating Temperature: -20℃~+70℃ Storage Temperature：-30℃~+80℃ Customization： Yes

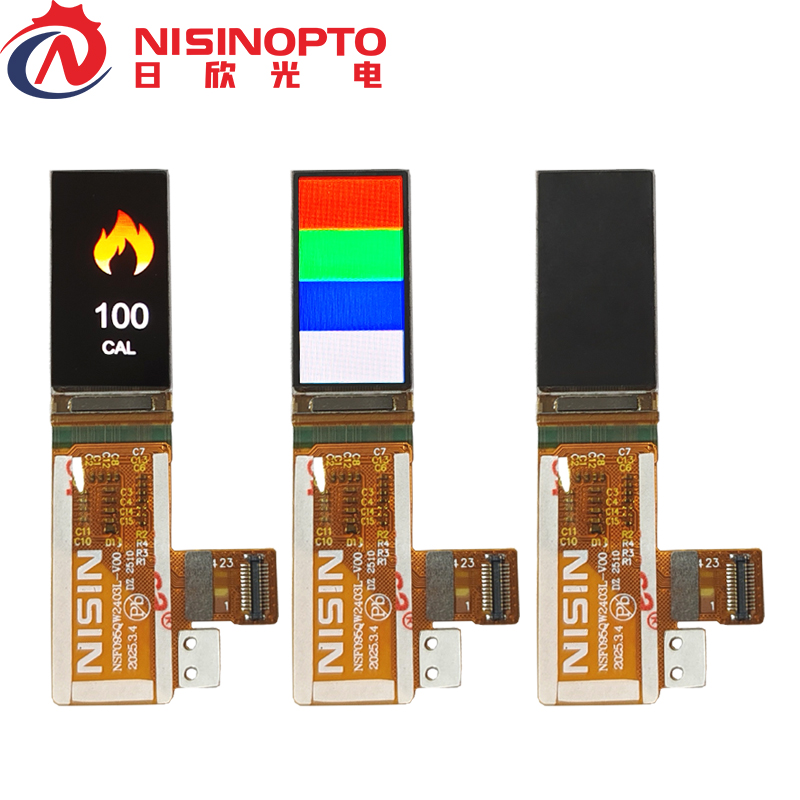

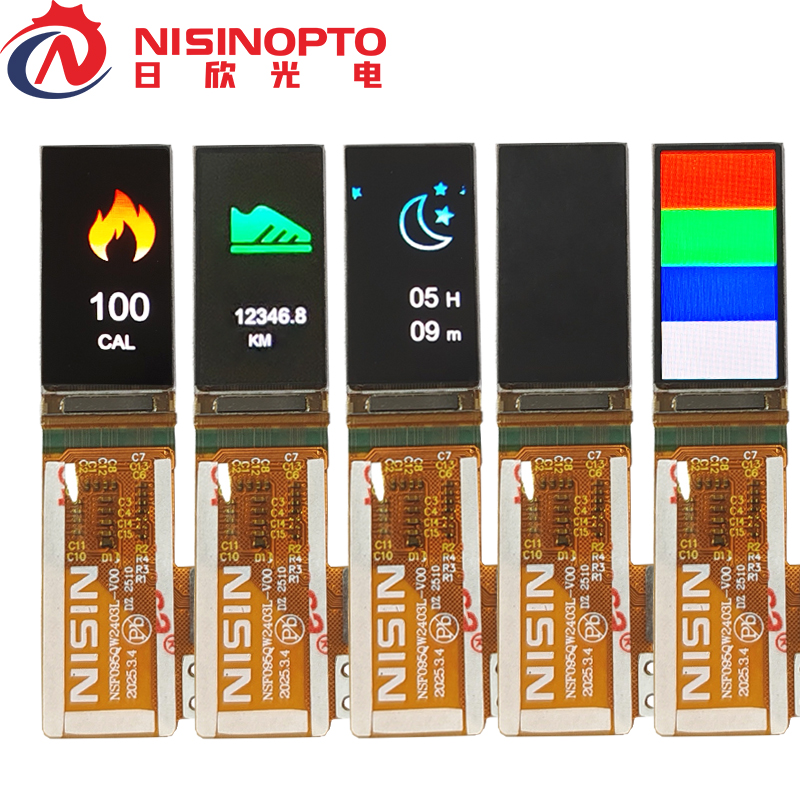

0.95 Inch 120×240 AMOLED LCD Module

Size: 0.95 inch Resolution: 120*240 Interface Type: SPI Display Area: 10.80*21.60mm LCM Dimensions: 12.80*27.35*1.07mm Dot Pitch: 90um*90um Color: 16.7M Contrast Ratio: 10000(MIN) Response Time: 3ms(MAX) Brightness: 480cd/m2 Product Type: AMOLED Display Type: Normally black View Angle: Full view Operating Temperature: -20℃~+70℃ Storage Temperature: -30℃~+80℃ customization: Yes

1.28 Inch 240×240 Metal Knurling Knob Screen

Size： 1.28 inch Resolution： 240*240 Display Area： 32.40*32.40mm LCM Dimensions： 52.5*27.02mm Dot Pitch： 0.135mm*0.135mm Color： 262K Contrast Ratio： 900 Response Time： 35MS Brightness： 250cd/m2 View Angle： ALL View TP Type： NO Interface； TTL UART Upgrade Method： Serial Port Shell Material： Hardware knurling + plastic Feature Selection ：Knob + Press Operating temperature： -10℃~+60℃ Storage Temperature： -20℃~+70℃ UI Platform： LeveTop customization： Software, color and appearance can be customized

1.28 Inch 240×240 TTL UART Knob Screen

Size： 1.28 inch Resolution： 240*240 Display Area： 32.40*32.40(mm) LCM Dimensions： 48.90*35.20(mm) Dot Pitch： 0.135*0.135(mm) Color： 262K Contrast Ratio： 900 Response Time： 35MS Brightness： 250cd/m2 View Angle： ALL View TP Type： NO Interface： TTL UART Upgrade Method: USB Shell Material： Plastic Feature Selection: Knob + Press Operating Temperature： -10℃~+60℃ Storage Temperature： -20℃~+70℃ UI Platform： LeveTop Customization： Software, color, and appearance can be customized

1.28 inch 240×240 UART smart Circular knob Display screen

Parameter of 1.28 inch 240*240 UART smart Circular knob Display screen PCBA Outside Dimensions： 41.00(W)*30.00(H)*22.50(T) mm LCM Outside Dimensions： 44.00(W)*44.00(H)*2.50(T) mm Active Area： 32.40(W)*32.40(H)mm Resolution： 240*240 Color： 65K Touch Type： COVER Interface Type： TBD TTL UART Input Voltage： TBD 5.0V (USB) Viewing direction： All view Backlight Luminance ：250 cd/m² Operating temperature： -20℃~+70℃ Storage temperature： -30℃~+80℃ Customisation： Hardware standard, software can be customized

1.43 Inch Round AMOLED LCD Display Module

Resolution: 466*466 Interface Type: MIPI、QSPI Display Area: 36.35*36.35(mm) LCM Dimensions: 45*45*2.55(mm) Dot Pitch: 78um*78um Color: 16.7M Contrast Ratio: 60000:1 Response Time: 3ms Brightness: 630 cd/m² Product Type: AMOLED Display Type: Normal Black View Angle: Full View Operating Temperature -20℃~+70℃ Storage Temperature: -30℃~+80℃ Customization: Yes

1.6 inch 400×400 UART smart Circular knob Display screen

Parameter of 1.6 inch 400*400 UART smart Circular knob Display screen Resolution： 400*400 Color： 65K Active Area： 39.84mm Backlight brightness： 350nits Contrast： 1000:1 Viewing angle： IPS FLASH： 16M bytes Up to 128MB Interface： RS485 Operating voltage DC Direct Current ：4.5~5.5V DC 5V input： 120mA Serial port mode： N81 Serial port level： TTL3.3V Interaction： Knob + Press Communication： UART UI： Support customization Operating temperature ：5V voltage at 60%RH -20~+70℃ Storage temperature： -30~+80℃ Operating humidity： -25℃,10%-90% Other certifications： RoHS

1.6 Inch Circular Knob LCD Screen Display

Resolution： 400*400 Display Area： 40mm*40mm Dimension： 59 (Outer diameter)mm * 25.95 (Thickness) mm Material: Aluminum alloy shell + ABS base Brightness: 350 cd/m2 USB Interface: Yes, Micro-B connector Mode Selection: TTL ESD Contact discharge: ±4KV, air discharge: ±8KV Operating Voltage: 4.5-5.5V Backlight: LED Colors: 65K Viewing Direction: IPS Operating Temperature: -20℃~+70℃ Storage Temperature :-30℃~+80℃ Customization: Yes

1.6 Inch Round TFT LCD Display Panels Supplier

Size:1.6 Inch Resolution： 400*400 Interface Type： MIPI 、QSPI Display Area： 39.84*39.84(mm) LCM Dimensions： 42.14*44.34*1.9(mm) Product size: 53*53*3.53 (mm) Dot Pitch: 33.2um*99.6um Color: 16.7M Contrast Ratio: 900 Response time: 35ms Brightness: 300cd/m² Product type: TFT Display Type: Normal Black View Angle: Full view Operating temperature: -20℃~+70℃ Storage temperature: -30℃~+80℃ Customization: Yes

1.6 Inch Uart Round Knob Screen with LED

Panel Type: TFT LCD Size: 1.6 inch Display Type: Normal Black Resolution: 400 x 400 Dot Pitch: 33.2um x 99.6um Colors: 16.7M Viewing Direction: IPS Interface Type: MIPI1 LANE TP Type: 12C Display Area: 39.84mm x 39.84mm Dimension: 53(H)X 53(V) x 3.53(T)(mm) Material Aluminum: alloy shell + ABS base Brightness: 300 cd/m2 Touchpoints: 5 USB Interface: Yes, Micro-B connector Mode Selection: TTL ESD Contact discharge: ±4KV, air discharge: ±8KV Operating Voltage: 4.5-5.5V Backlight: LED Operating Temperature: -20℃~+70℃ Storage Temperature: -30℃~+80℃ Customization: Yes
