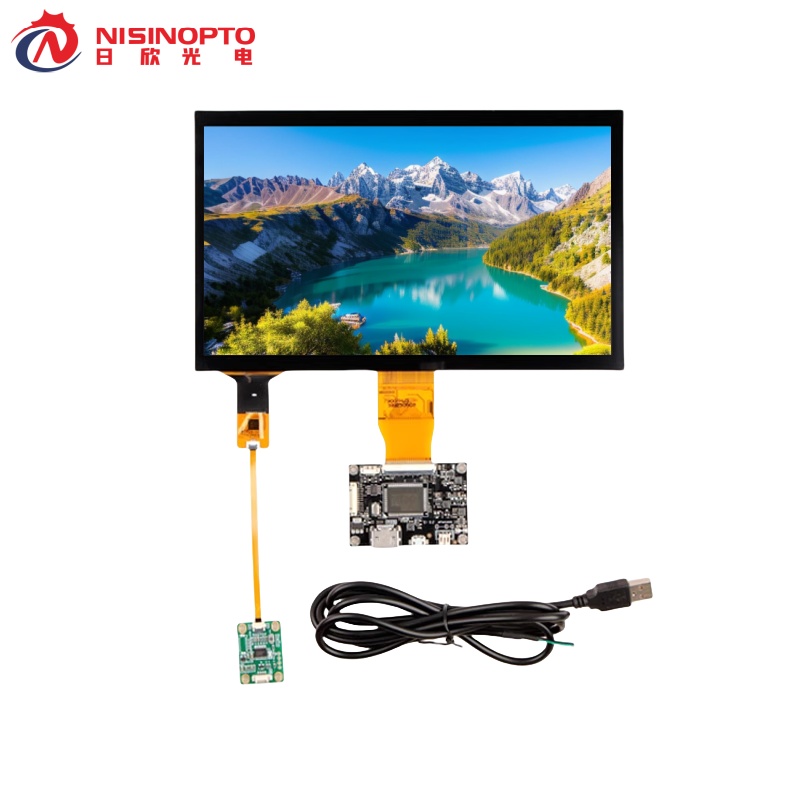

10.1-inch industrial-grade HD display
10.1-inch industrial-grade HD display product overview
This 10.1-inch display uses advanced RGB interface drive technology and is designed for industrial control, vehicle-mounted equipment, Smart Terminals, and commercial display scenarios. Its 1024×600 HD resolution and 16.7M true color display capability, combined with a wide viewing angle design at 6 o’clock, provide users with a clear, sharp, and colorful visual experience. Gleichzeitig, it supports wide temperature operation from -20℃ to 70℃ to meet the stable display requirements in harsh environments.
Core advantages of 10.1-inch industrial-grade HD display
1. Excellent display performance
HD image quality: 1024×600 resolution with 0.2175×0.2088mm fine pixel pitch, achieving delicate and grainless image presentation
Wide viewing angle coverage: 6 o’clock viewing angle optimization technology, vertical viewing angle of ±80° (typical value), ensuring color consistency when viewing from multiple angles
Excellent dynamic performance: 8ms fast response time, effectively reducing smearing phenomenon, adapting to dynamic picture display scenes
Hoher Kontrast: 600:1 contrast enhances dark details and improves visibility in complex lighting environments
2. Industrial-grade reliability design
Wide temperature range support: -20℃~70℃ operating temperature / -30℃~80℃ storage temperature, adapting to extreme cold, high temperature, and rapid temperature change scenes
Ultra-thin structure: 3.5mm ultra-thin module thickness, compatible with space-constrained embedded installation requirements
Rugged architecture: 235×143mm compact size with reinforced panel, excellent anti-vibration and anti-shock performance
3. Smart display solution
RGB full interface driver: supports standard RGB 24-bit signal input, compatible with mainstream controller solutions, plug-and-play
Color management optimization: built-in Gamma correction and color temperature adjustment algorithm to achieve accurate color restoration in professional scenarios such as medical and industrial control
Niedriges Power -Design: adopts LED backlight energy-saving technology, typical power consumption <2.5W, supports long-term operation of battery-powered equipment.
Typical application scenarios of 10.1-inch industrial-grade high-definition display
✅ Industrial HMI human-machine interface | ✅ Car-mounted central control/instrument system
✅ Smart home control terminal | ✅ Medical equipment display unit
✅ Commercial advertising machine/self-service terminal | ✅ IoT edge computing device
10.1-inch industrial-grade high-definition display customization service
Supports personalized needs such as resolution upgrade, wide temperature expansion (-40℃~85℃), sunlight visibility (1000cd/m² high-brightness version), capacitive/resistive touch screen integration, usw., providing a one-stop display solution.
